Building entries

Slab entry

with foil flange

BDFF

Add to wish listAdd to wish list

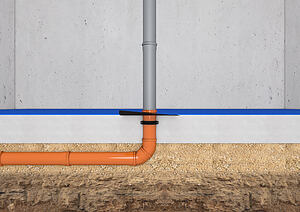

Slab entry - with foil flange
USP
  • ready for installation in the slab
For connecting KG/HT pipes. Gas and watertight connection to the base plate with an integrated lip seal. Includes foil flange for connection to a bituminous thick coating, weldable membrane, or vapour barrier.
Slab entry - with foil flange

Facts

Advantages:

  • easy connection of the sealing or vapour barrier using a foil flange
  • no interruption of the waste water pipe system
  • with push-in socket on one side to fit standard KG/HT pipes
  • available in KG and KG2000

Scope of delivery:

  • KG pipe with bonded lip seal
  • KG2000 pipe with welded-on lip seal
  • 1 piece of construction time protection cover
  • oil and bitumen-resistant foil flange

Dimensions:

  • Pipe lenght: 500 mm
  • Foil flange up to DN 160: 500 x 500 mm
  • Foil flange from DN 200: 750 x 750 mm

Application range:

  • Water exposure class DIN 18533: W1-E
  • Waterproof concrete stress class 1 and 2

Material:

  • KG pipe: PVC-U/KG2000 pipe: PP
  • Lip seal: TPE
  • Foil flange: EPDM

Tightness:

  • pressure-rated up to 5,0 bar - equivalent to 50 m of water column
  • radon tight
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

suitable for medium pipe OD (mm) Type Article code Packing unit Article number GTIN
110 KG BDFF110 KG 1 3030551725 4052487246439
Download of data sheet and tender specification
title=
125 KG BDFF125 KG 1 3030551726 4052487246453
Download of data sheet and tender specification
title=
160 KG BDFF160 KG 1 3030551731 4052487246477
Download of data sheet and tender specification
title=
200 KG BDFF200 KG 1 3030551732 4052487246491
Download of data sheet and tender specification
title=
250 KG BDFF250 KG 1 3030584921 4052487247399
Download of data sheet and tender specification
title=
315 KG BDFF315 KG 1) 1 3030584923 4052487247412
Download of data sheet and tender specification
title=


1) without construction period protection cover
